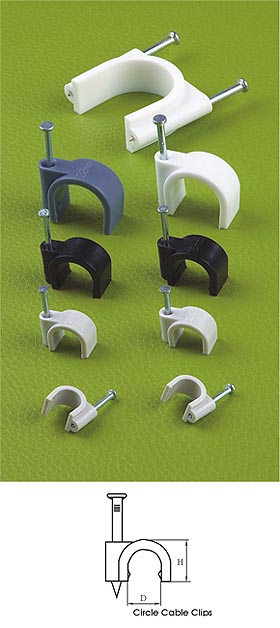

Circle Cable Clips |
| |
 |
PE(white, grey), elasticity and shock resisting.
Inserting type, nail attached in clips. Save time and cost. |
| |
ITEM.NO. |
H（mm） |
CLRCLE PATH D(mm) |
NAIL |
COLOR |
SFR-3MM |
3.6 |
3 |
1.4×15 |
WHITE
GREY
BLACK
BROWN
DARK GREY |
SFR-3.5MM |
4.2 |
3.5 |
1.47×14 |
SFR-4MM |
5.3 |
4 |
1.7×14 |
SFR-5MM |
6 |
5 |
1.7×14 |
SFR-6MM |
8 |
6 |
1.82×16 |
SFR-7MM |
8.7 |
7 |
1.82×18 |
SFR-8MM |
9.5 |
8 |
1.95×19 |
SFR-9MM |
11 |
9 |
2.05×22 |
SFR-10MM |
12 |
10 |
2.1×23 |
SFR-12MM |
13.5 |
12 |
2.2×25 |
SFR-14MM |
16.5 |
14 |
2.3×30 |
SFR-16MM |
18 |
16 |
2.35×32 |
SFR-17MM |
20 |
17 |
2.6×38 |
SFR-18MM |
20.5 |
18 |
2.6×38 |
SFR-20MM |
22.5 |
20 |
2.7×40 |
SFR-22MM |
23.5 |
22 |
2.9×43 |
SFR-25MM |
26.5 |
25 |
3.1×50 |
SFR-30MM |
32.5 |
30 |
3.5×55 |
SFR-32MM |
34.5 |
32 |
3.5×55 |
SFR-35MM |
38 |
35 |
3.5×60 |
SFR-40MM |
43.8 |
40 |
3.5×65 |
SFR-50MM |
54.5 |
50 |
4.0×78 |
|
| |
| |
|
K-type Circle Cable Clips |
| |
 |
|
| ITEM.NO. |
H(mm) |
CLRCLE PATHD(mm) |
NAIL |
COLOR |
| SFK-4MM |
6.3 |
4 |
2.5×18 |
WHITE
GREY
BLACKBROWN
DARK GREY |
| SFK-5MM |
7.4 |
5 |
2.5×18 |
| SFK-6MM |
8.4 |
6 |
2.5×23 |
| SFK-7MM |
9.7 |
7 |
2.5×23 |
| SFK-8MM |
13 |
8 |
2.5×23 |
| SFK-9MM |
13 |
9 |
2.5×25 |
| SFK-10MM |
13.8 |
10 |
2.5×25 |
| SFK-12MM |
16 |
12 |
2.5×27 |
| SFK-14MM |
18.5 |
14 |
2.5×27 |
| SFK-16MM |
21 |
16 |
2.5×37 |
| SFK-22MM |
26 |
22 |
2.5×41 |
| SFK-25MM |
31 |
25 |
2.5×47 |
|
| |
| |

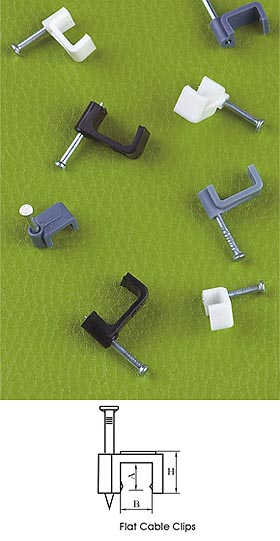

Flat Cable Clips |
| |
 |
PE(white,grey), elasticity and shockresisting.
Inserting type, nail attached in clips. Save time and cost. |
| |
| ITEM.NO. |
H(mm) |
A |
B |
NAIL |
COLOR |
| SFF-2.5MM |
3.5 |
2 |
2.5 |
1.4×15 |
WHITE
GREY
BLACKBROWN
DARK GREY |
| SFF-4MM |
5.5 |
3.5 |
4 |
1.7×14 |
| SFF-5MM |
5.5 |
3.5 |
5 |
1.7×14 |
| SFF-6MM |
6 |
4.1 |
6 |
1.7×16 |
| SFF-7MM |
6.5 |
4.7 |
7 |
1.9×16 |
| SFF-8MM |
7 |
5 |
8 |
2.1×19 |
| SFF-9MM |
8 |
5.4 |
9 |
2.1×20 |
| SFF-10MM |
8 |
5.6 |
10 |
2.3×21 |
| SFF-12MM |
8.5 |
5.6 |
12 |
2.3×23 |
| SFF-14MM |
10 |
7 |
14 |
2.3×23 |
| SFF-18MM |
12.5 |
8.5 |
18 |
2.6×27 |
| SFF-19MM |
14 |
10.5 |
19 |
2.6×27 |
|
| |
| |

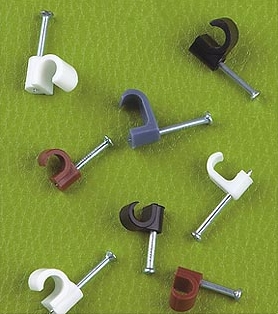

Coaxial Cable Clips |
| |
 |
PE, elasticity and shock resisting.
Inserting type, nailattached in clips.Save time and cost. |
| |
| ITEM.NO. |
W(mm) |
H(mm) |
NAIL(mm) |
TYPE |
| NC-0406A |
4～6 |
7.5 |
1.58×16 |
A |
| NC-0407 |
4～7 |
7.5 |
1.82×20 |
| NC-0607 |
6～7 |
7.5 |
2.1×20 |
| NC-0812 |
8～12 |
12 |
2.2×25 |
| NC-1216 |
12～16 |
15.5 |
2.35×32 |
| NC-1619 |
16～19 |
19 |
2.5×40 |
| NC-2025 |
20～25 |
22.5 |
2.4×43 |
| NC-0406B |
4～6 |
7.5 |
1.58×16 |
B |
| NC-0508 |
5～8 |
7.3 |
2.1×25 |
| NC-0610 |
6～10 |
8.3 |
2.1×25 |
|
| |
|
| ITEM.NO. |
W(mm) |
H(mm) |
NAIL(mm) |
TYPE |
| NC3-5 |
3-5 |
5 |
1.2×20 |
A |
| NC5-7 |
5-7 |
7.9 |
1.2×20 |
| NC7-10 |
7-10 |
10.3 |
1.5×25 |
| NC8-12 |
8-12 |
11.8 |
2.0×31 |
| NC10-14 |
10-14 |
13 |
2.0×31 |
| NC14-20 |
14-20 |
16.5 |
2.1×35 |
| NC3×5 |
3×5 |
5 |
1.2×20 |
B |
| NC4×6 |
4×6 |
5.8 |
1.6×16.5 |
| NC6×9 |
6×9 |
7.6 |
1.6×24.5 |
|
| |
| |
|
TE Cable Clips |
| |
 |
|
| ITEM.NO. |
H |
A |
B |
NAIL |
| (mm) |
(mm) |
(mm) |
| TE-1.5 |
7.3 |
4.5 |
9 |
2.1×23 |
| TE-2.5 |
8.2 |
5.5 |
10 |
2.1×23 |
| TE-4 |
8.5 |
5.6 |
12 |
2.1×23 |
| TE-6 |
10.5 |
7 |
14 |
2.1×28 |
| TE-10 |
11.5 |
8.5 |
17 |
2.1×28 |
| TED-1.5 |
7.3 |
4.9 |
17 |
2.1×23 |
| (Double) |
| TED-2.5 |
8.4 |
5.8 |
20 |
2.1×23 |
| (Double) |
|
| |
|
| |
| |
|
